Get safe and potable supply hot water in your home or business place with Electroheat Hot Water System. We use the newest technology in water heating which allow the direct heating from the water source and keep the water warm round-the-clock. Incorporated with the latest power consumption tech, our HWS can produce hot water using minimal portion of power and less environmental footprint. Have access to clean and hot water with our top-notch HWS!
Solar Heater Depot is proud to be an official SolarMate retailer. We offer the following system models:

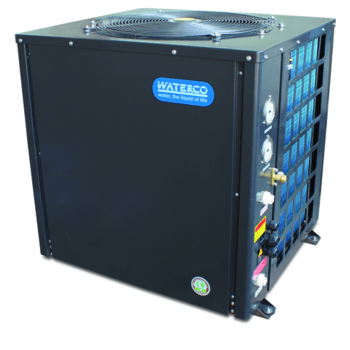

HWS Series
| Model | HWS 9.5 kW | HWS 20 kW | HWS 40 kW |
|---|---|---|---|
| Heating Capacity (kW) | 9.5 | 20 | 40 |
| Power Supply (V/Ph/Hz) | 240/1/50 | 415/3/50 | 415/3/50 |
| Input Power (kW) | 2.3 | 4.9 | 9.8 |
| Running Current (A) | 12.46 | 8.77 | 17.54 |
| Max. Input Power (kW) | 3.26 | 6.86 | 13.72 |
| Max. Running Current (A) | 17.44 | 12.28 | 24.55 |
| Refrigerant | R417a | R417a | R417a |
| Compressor Type | Rotary | Scroll | Scroll |
| Compressor Quantity | 1 | 1 | 2 |
| COP Air 28°C/Water 30°C | 6 | 6 | 6 |
| COP Air 28°C/Water 35°C | 5.5 | 5.5 | 5.5 |
| COP Air 28°C/Water 40°C | 5.1 | 5.1 | 5.1 |
| COP Air 28°C/Water 50°C | 4.6 | 4.6 | 4.6 |
| COP Air 28°C/Water 55°C | 4.1 | 4.1 | 4.1 |
| Outlet Water Temp (°C) | 60 | 60 | 60 |
| Max. Outlet Water Temp (°C) | 65 | 65 | 65 |
| Hot Water Yield (L/h) | 204 | 430 | 860 |
| Water Flow (m3/h) | 2.0 | 4.3 | 8.6 |
| Condenser | Tube in shell | Tube in shell | Tube in shell |
| Water Pressure Drop (kPa) | 40 | 55 | 55 |
| Water Connection Tube (mm) | DN25 | DN25 | DN25 |
| Noise 9dB(A) | <55 | <57 | <61 |
| Electric Protection | I | I | I |
| Mechanical Protection | IPX4 | IPX4 | IPX4 |
| Net / Gross | |||
| Weight (kg) | 87/130 | 139/157 | 268/316 |
| Dimension (LxWxH) | 752x690x765 | 752x690x965 | 1450x702x1260 |
| Packing Dimension (LxWxH) | 840x750x900 | 840x750x1100 | 1525x805x1420 |
